vM CT360
CD Transport |
| |
Description

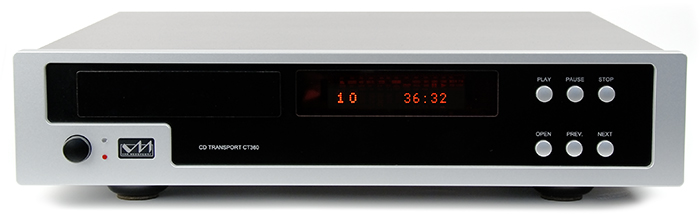

The Van Medevoort CT360 stereo CD transport is designed for music lovers
and to match and connect on the digital input of the external DAC’s like
the vM DA360 or DA470. The same heavy, rigid housing is used to minimize
resonances and mechanical distortion. The CD transport mechanism is
mounted on a multiple sub chassis with vibration absorption and using an
elastic suspension to isolate against acoustic feedback. Only audiophile
quality components are used in the power supplies and the digital
circuits. The vM Super Clock is placed for perfect timing, but also for
minimum jitter and phase noise. Extra control options are available,

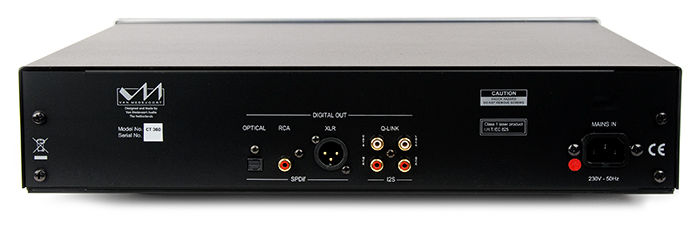

such as repeat or random play, by using the remote control. Next to the
digital coaxial RCA and XLR outputs, for SPDif and AES-EBU, there is
also an optical output available and even a Q-Link. |
| |
Features
• Stereo CD transport
• Equipped with vM Super Clock with low phase distortion and
jitter
• Gold plated digital outputs: Q-Link, XLR, coaxial and optical
• Special vM power supplies
• Audiophile digital circuitry for optimal soundstage
• Highly musical performance, low distortion
• vM remote control
• Silver / black finished front plate |
 |
|
| |
Specifications |
|
| CD mechanism |
vM Teac |
| Conform |
Red Book protocol |
| Signal format |
16 bit PCM - 44.1 kHz |
| Disc format |
CD, CD-R, CD-RW |
| Disc support |
80 / 120mm (IEC908) |
| vM Super Clock |
16.9344 MHz |
| Outputs /
connectors |
4 / Q-Link,
XLR, RCA + Optical |
| Output digital |
0.5 Vp-p, EBU-XLR 4Vp-p |
| Power supply |
115-230 Volt
/ 50-60 Hz |
| Power consumption |
5 / 15 Watt, stby / on |
| Weight |
10 kg |
| Size W x H (H+Feet) x D |
434 x 88 (102) x 390 mm |
| |
|
| Options |
●vvM Silver Cable |
|
|
|
Van Medevoort Audio Products
|
|
|
|
 |
|
|
