vM PA471 mono power
amplifier 1x450W Class "A" |
| |
Description

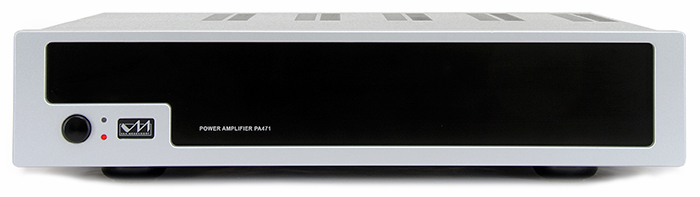

The Van Medevoort PA471 mono class ’A’ power amplifier is built with
very fast, low-distortion, discrete power stages and an oversized power
supply section for the most musical performance and best control over
your loudspeaker system under any load, and with any kind of music. The
housing is extremely solid with a beautiful finish in silver or black.
Only high-grade audiophile components and Silver Wire are used. A 12
Volt DC input is installed to switch the PA471 on and off with the
remote control bus of your vM control amplifier. |
| |
Features
• 450 Watt mono music power
• Handles any loudspeaker system including ESL
• Excellent transient response through high slew rate
• Outstanding musical performance with low distortion

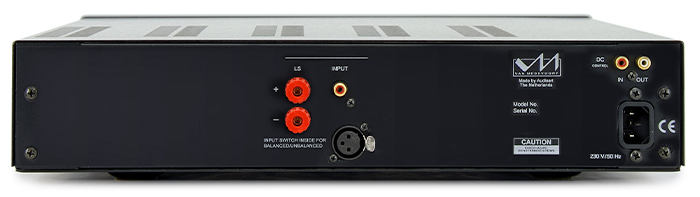

• XLR and RCA gold plated input connectors
• Protection circuitry and muting
• Remote controlled on / off by way of DC bus
• Silver or black finished front plate |
 |
|
| |
Specifications |
|
| Nominal power |
> 1x 450 Watt / 8 Ohms |
| Damping factor |
1200 - 1500 |
| Input impedance |
100 kOhms |
| Input level |
1.5 Veff. / 450 Watt |
| Distortion |
< 0.002 % / 1 -100,000 Hz |
| Signal to
noise ratio |
> 106 dB |
| Inputs / connectors |
1 / XLR + RCA switchable |
| Outputs / connectors |
1 / 5 way binding post |
| Power supply |
115-230 Volt / 50-60 Hz |
| Power consumption |
5/60-550 Watt stb/min-max. |
| Weight |
14 kg |
| Size W x H (H+Feet) x D |
434 x 88 (102) x 410 mm |
| |
|
| Options |
vM
Silver Cable |
|
|
|
Van Medevoort Audio Products
|
|
|
|
|
